OM1 Single Mode Fiber Optic Cable FRP Strength For Outdoor

Model Number : GYFXTY

Place of Origin : China

Packaging Details : 2km/wooden drums, based on your requirement

Supply Ability : 100 Kilometer/Kilometers per Week

MOQ : 2000 meters

Price : $0.20 - $0.39/meters

Brand Name : ODM/OEM

Certification : RoHS, CE

Payment Terms : T/T, Western Union

Type : Outdoor Fiber Optic Cable

Number of Conductors : ≥ 10

Strength Member Material : FRP

Loose tube material : PBT

Jacket material : PE

Operating temperature(℃) : -40~70

Single-Mode Fiber : G657A1

Multi-Mode Fiber : OM1

No. of Fiber : 2-24.

Use : FTTX

Color : Black

Contact Now

Manufacturing Outdoor 12 single mode optical fiber cable GYFXTY ASU fiber optic cable manufacturers

Product Description
OM1 Single Mode Fiber Optic Cable FRP Strength For Outdoor
OM1 Single Mode Fiber Optic Cable FRP Strength For Outdoor
Outdoor fiber optic cable GYFXTY-12B1

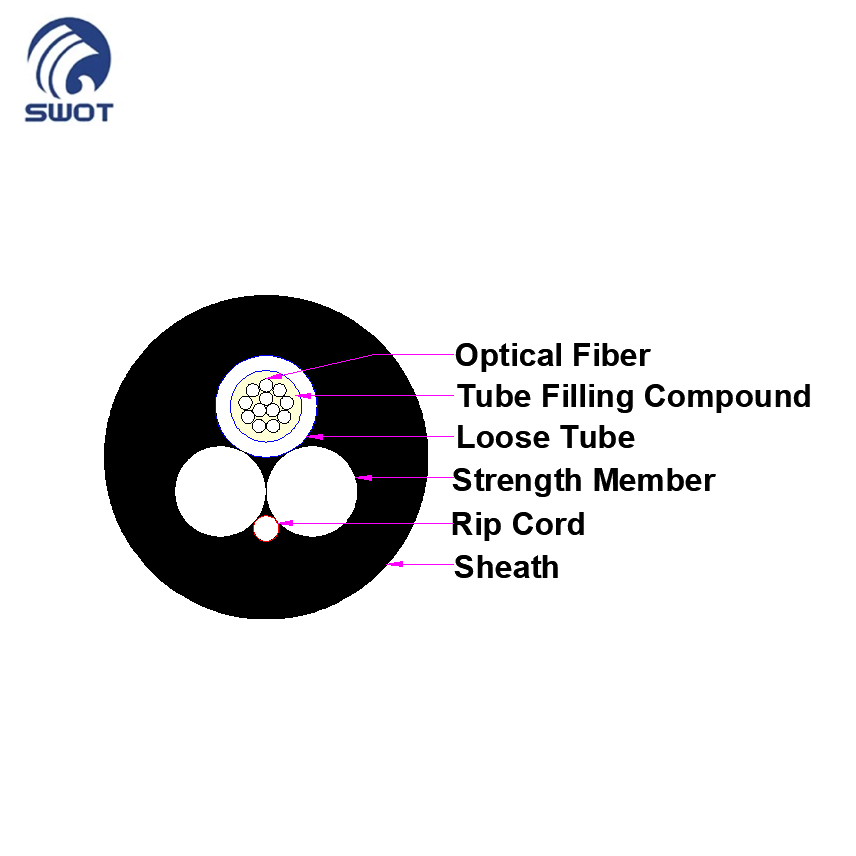

The fibers,250um, are positioned in a central tube made of a high modules plastic. The tubes are filled with a water-resistant
filling compound. Two paralled FRP and outer sheath as a non-metallic strength member.
Feature
* Non-metal design can prevent the cable from radio interference and magnetic wave interference
* Central tube filling compound ensure good moisture resistance performance
OM1 Single Mode Fiber Optic Cable FRP Strength For Outdoor
Technical data
No. of cable
Fiber Model
G.657A1
Steel wire
Diameter(±0.03)mm
1
NO.
1
FRP
Diameter(±0.03)mm
0.5
NO.
2
Outer Sheath
Material
LSZH
Colour
Black
Cable Diameter(±0.2)mm
5.0×2.0
Cable Wetght(±2)kg/km
21
Attenuation
1310nm
dB/km
0.4
1550nm
0.3
Allowable Tensile Strength
Short Term
N
600
Long Term
300
Min. bending radius
Without Tension
15.0×Cable-φ
Under Maximum Tension
30.0×Cable-φ
Temperature range
Installation
-20~+60
(℃)
Transport&Storage
-40~+70
Operation
-40~+70
Our Company
OM1 Single Mode Fiber Optic Cable FRP Strength For Outdoor
We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
OM1 Single Mode Fiber Optic Cable FRP Strength For Outdoor
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
